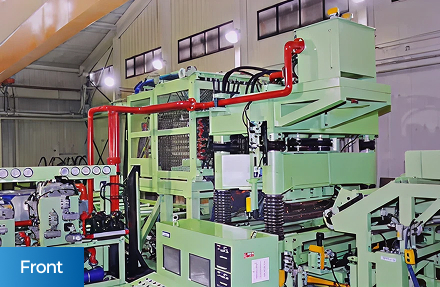

970 Type Auto Press Machine

Sangjin Development’s automatic pressure welding machine
achieves both quality and speed.

With an automatic pressure welding machine designed and manufactured in-house by Sangjin Development, two cross bars can be welded simultaneously.

Power load
1200KVA

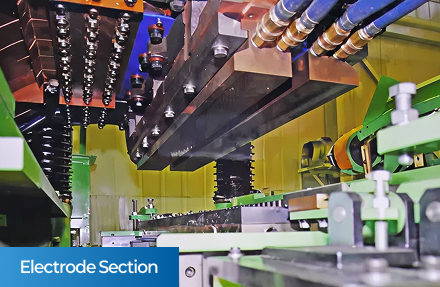

Max. electrode pressure
180ton
Grating width capacity
545mm-995mm
Applicable bearing bar size
From FB19mmx3t to FB65mmx6t,
From IB25mmx5x3t to IB55mmx7x4t
Max. welding capacity
34 bars at 30mm pitch /
29 bars at 35.3mm pitch, etc
Auxiliary equipment

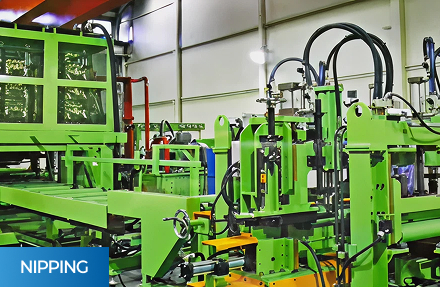

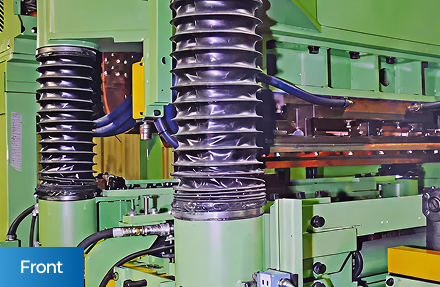

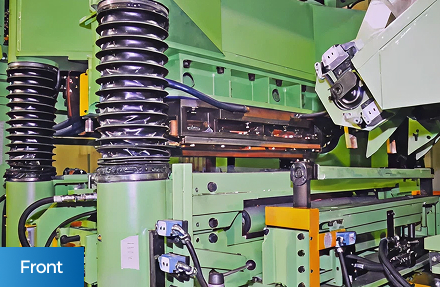

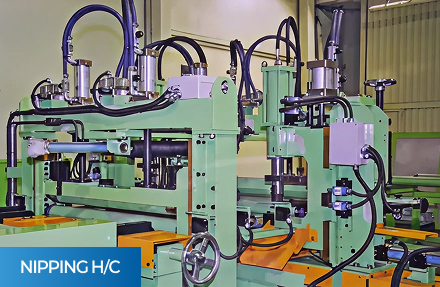

Includes front roller, rear roller, and nipping machine
