1260 Type Auto Press Machine

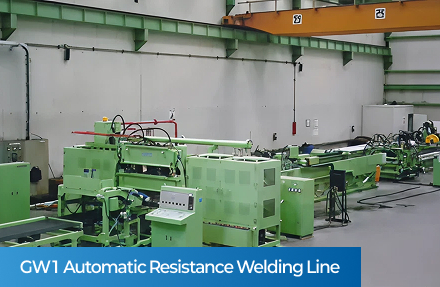

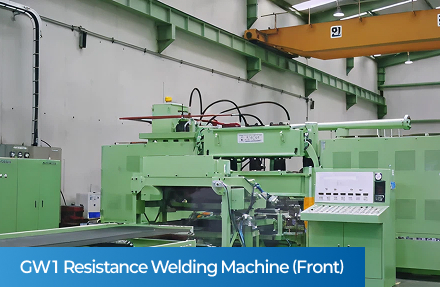

Sangjin Development’s automatic pressure welding machine
achieves both quality and speed.

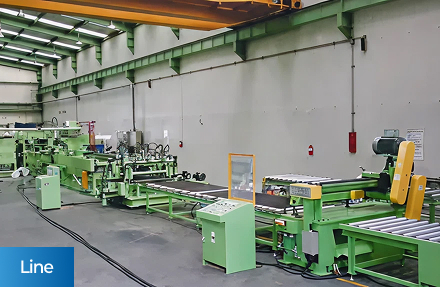

With an automatic pressure welding machine designed and manufactured in-house by Sangjin Development, cross bars are welded one at a time.

Power load
900 kVA, three-phase
Power of hydraulic motor
37 kW
Grating width capacity
545mm~995 mm (approx. 1000 mm)
Applicable bearing bar size
From FB19mmx3t to FB75mmx6t,
From IB25mmx5x3t to IB75mmx7x4t
Max. welding capacity
34 bars at 30mm pitch /
29 bars at 35.3mm, etc
Auxiliary equipment (standard included)

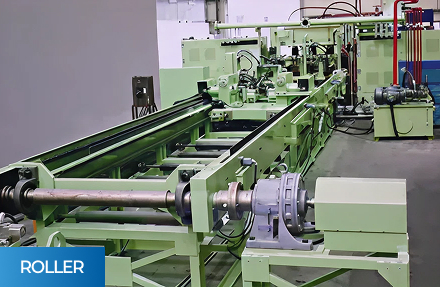

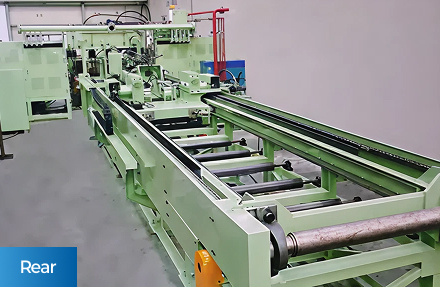

Auxiliary equipment such as front roller, rear roller,

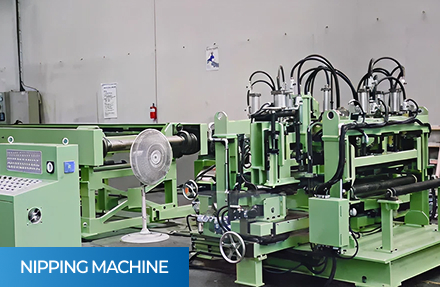

and nipping machine are included.
Auxiliary equipment
Includes front roller, rear roller, and nipping machine
